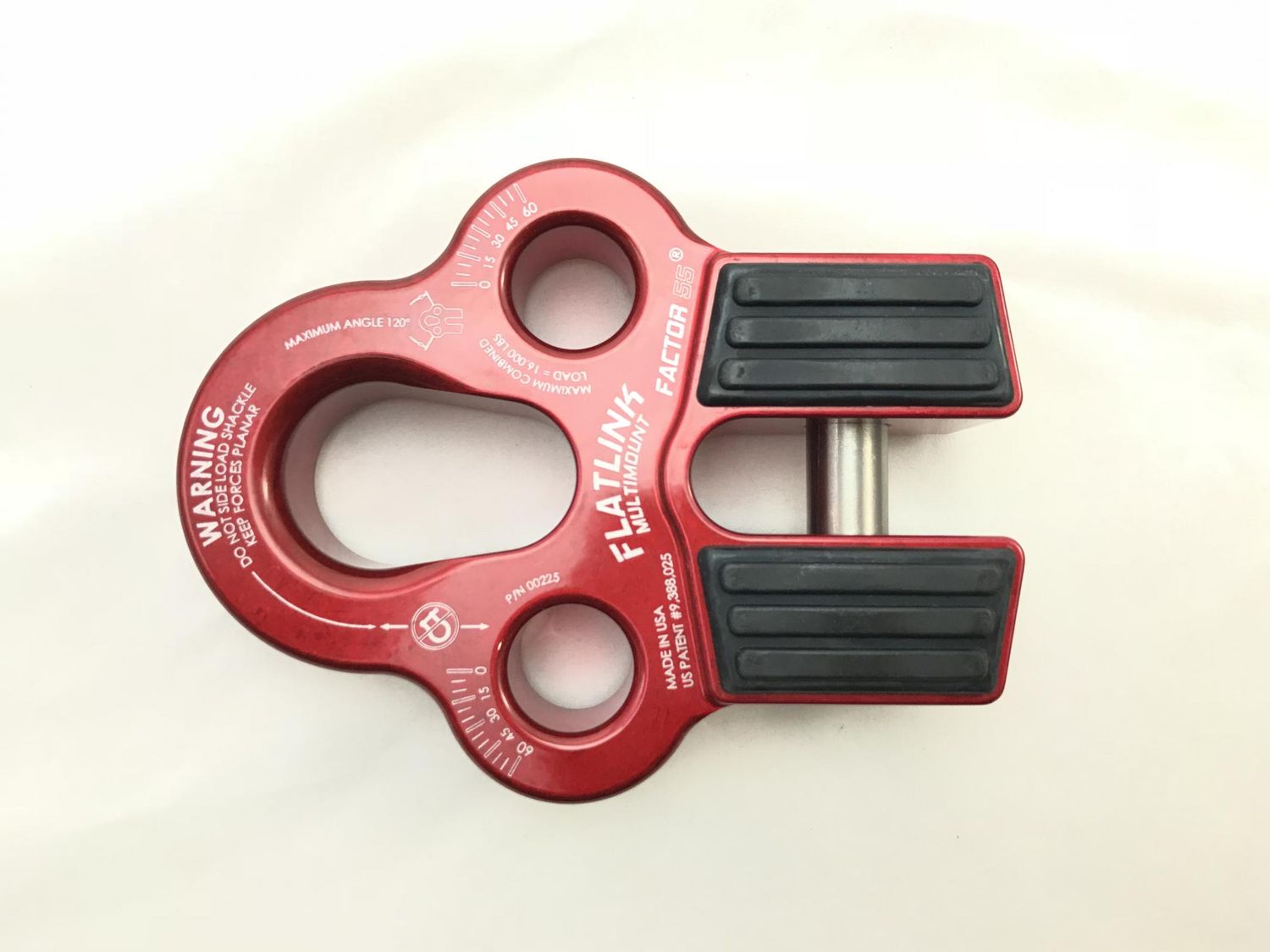

Winch Line Shackle Mount Foldable Flatlink Multimount Red
$286.25
Color
Please choose
In stock
Product Details
UPC:
00225-01
Brand:
Factor 55
Vehicle_Type:
Jeep|Truck/SUV
Winch Line Shackle Mount Foldable Flatlink Multimount Gray Factor 55. Replace conventional winch hooks with a safer more secure shackle/D-ring. Multiple shackle interface for bridle and off-camber towing. Replace conventional winch hooks with a safer more secure shackle/D-ring
- Lightweight - Precision CNC machined 6000 series aluminum
- No splicing required - titanium double shear pin design
- Designed for both steel cables and synthetic winch ropes
- Integrated EPDM rubber pads for fairlead protection
- Foldable-1.75 inchthick (Compatible with all fairlead license plate mounting brackets)
- For rope and cable diameters up to 3/8 inch
- Fits multiple 3/4 inch screw pin shackles
- Oval Hole opening connects to either the pin or bow end of common 3/4 inch screw pin shackles
- Oval Hole opening connects to the pin ends of 7/8 inch and 1inch screw pin shackles
- Fits over most OEM tow hooks
- Warning: Keep forces in line. Do Not Side Load Shackle
- Available in Military Specification Anodizing (Mil-A-8625 F Type III) Gray and powder coated finishes
- 5/8 inch diameter 6AI-4V titanium double shear pin
- Max Load: 16,000 pounds
- Ultimate Strength: 40,000 pounds
- Weight: 30oz
- Made in USA
